Gigabyte X670 GAMING X AX V2
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
X670 GAMING X AX V2
AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：Twin 14*+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
* 7+7 phases parallel power design
Digital VRM Design 14+2+2 Phases Digital VRM Solution
GIGABYTE UD series motherboards use a 14+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Fully Covered MOSFET Heatsink
3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
6-Layer & 2X Copper PCB
2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
8mm Mega-Heatpipe
8mm Mega-Heatpipe has 30% wider diameter than traditional 6mm heatpipe and is able to transfer more heat under same time period.
Wi-Fi 6E Advantage
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

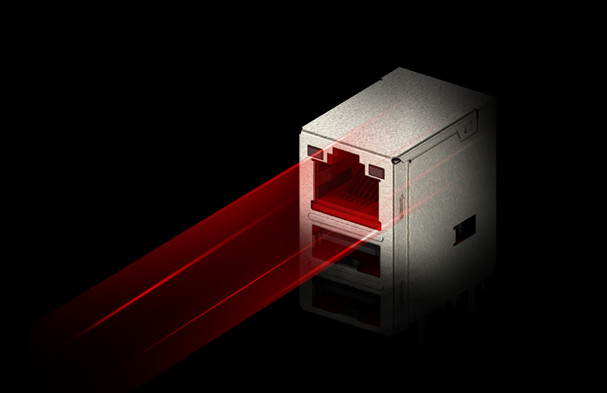

2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0/ 4.0 Hardware Design
GIGABYTE X670 Motherboards are ready to work with the PCIe 5.0/ 4.0 devices which are expected to experience 4 times bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point
GIGABYTE Control Center
A unified software platform across a variety of GIGABYTE products.
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X670 |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor:
(Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Storage Interface |
CPU: |
| USB | CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 6 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC)
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor: 30.5 x 24.4 cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | X670 GAMING X AX V2 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD X670 |
| Μέγεθος μητρικής | ATX - (30.5 x 24.4 cm) |
| Τύπος Μνήμης | DDR5 - (Up to 192 GB total / 48 GB single DIMM capacity) |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 - (1x Supports PCIe 4.0 and runs at x16, 1x Supports PCIe 3.0 and runs at x4, 1x Supports PCIe 3.0 and runs at x2) |
| Αποθήκευση | 4x SATA 4x M.2 |
| Έξοδοι Γραφικών | 1x HDMI - (v 2.1 with HDCP 2.3) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi - (a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands) Bluetooth - (v 5.3) USB LAN USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
