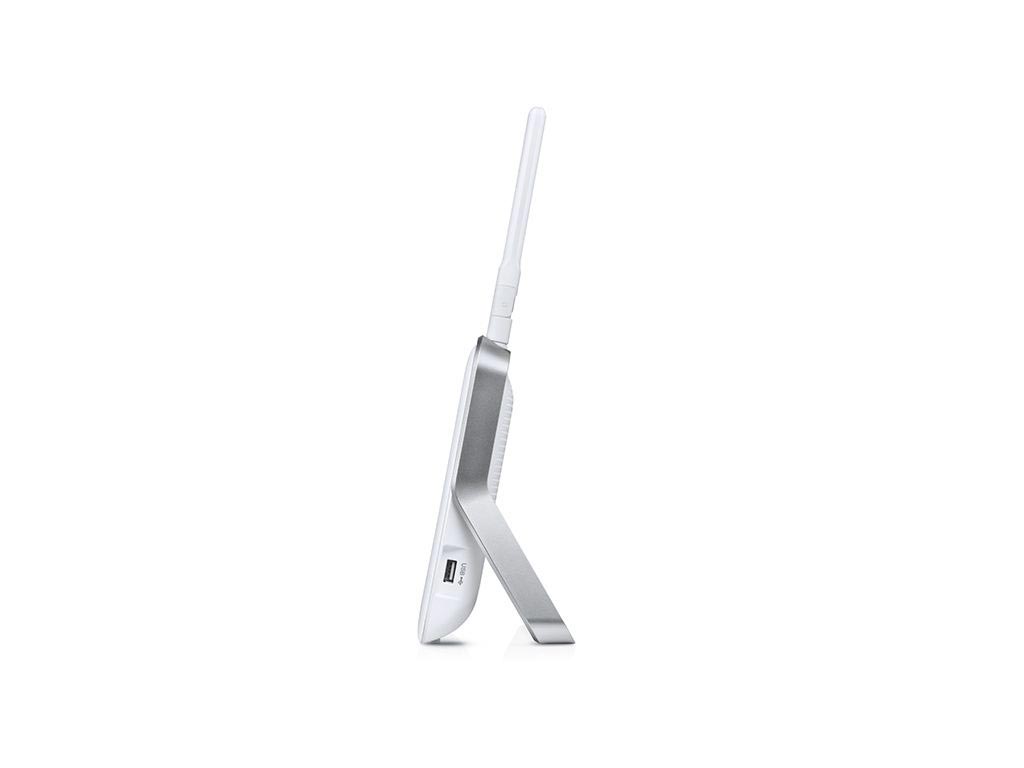

Tp-Link Archer VR200 Wireless Dual Band Gigabit VDSL2/ADSL2+ Router (Annex A) V1.0
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
HARDWARE FEATURES | |
---|---|
Interface | 3 10/100/1000Mbps RJ45 LAN Ports 1 10/100/1000Mbps RJ45 WAN/LAN Port 1 RJ11 Port 2 USB 2.0 Port |
Button | WPS Button, LED Button, Wireless On/Off Button, Power On/Off Button |
External Power Supply | 12V/2A |
IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
VDSL2 Standards | ITU-T G.993.2, Up to 30a profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 9.6 x 7.1 x 3.5 in. (245 x 181 x 90 mm) |
Antenna Type | 3 external detachable dual band antennas (RP-SMA) |
Antenna Gain | 3 x 2dBi for 2.4GHz and 1x 3dBi for 5GHz |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 433Mbps at 5GHz, 300Mbps at 2.4GHz |
Transmit Power | <20dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless, Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
SOFTWARE FEATURES | |
---|---|
Quality of Service | ATM QoS, Traffic Control(IP QoS) |
Security | NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Operating Modes | VDSL/ADSL Modem Router, Wireless Router |
Management | Web Based Configuration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem |
Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
OTHERS | |
---|---|
Certification | CE, FCC, RCM, RoHS |
Package Contents | AC750 Wireless Dual Band Gigabit VDSL2 Modem Router Archer VR200 External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS,NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Superfast Broadband Speeds and Fast Wi-Fi Speeds
The Archer VR200 features superfast broadband speeds of up to 100Mbps and supports VDSL2, as well as backward compatibility with ADSL2+/ADSL2/ADSL.
The modem router exploits the full potential of VDSL broadband connections to deliver Wi-Fi speeds of up to 750Mbps (300Mbps on 2.4 GHz and 433Mbps on 5GHz). Also, by using two dedicated networks, it reduces wireless signal interference.
Versatile Connectivity
The Archer VR200 is an integrated DSL modem router that works with any kind of Internet connection, including VDSL, VDSL2, ADSL, ADSL2, and ADSL2+.
With the Gigabit Ethernet WAN option, the Archer VR200 can also be used with any fiber broadband or cable modem with an Ethernet output.
Better Coverage and a More Stable Connection
Three external antennas help the Archer VR200 provide stable coverage throughout your entire home and property. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections.
Fast USB Sharing
With USB 2.0 ports, you can easily access and share a local printer, a local network drive, or a remote FTP server. Storing, accessing, and sharing files and media has never been easier.
For added connection versatility, both USB ports support 3G/4G dongles, so you can stay connected without missing a beat.
Gigabit Wired Connection
With four built-in Gigabit Ethernet ports, the Archer VR200 is capable of providing the stable, ultra-fast wired connections that you need to ensure lag-free gaming and uninterrupted HD video streaming.
Elegant Appearance
The sophisticated design enhances every home. Its gentle curves, excellent crafting and remarkable quality exudes style and elegance without compromising on performance.
Κατασκευαστής | Tp-Link |
Μοντέλο | Archer VR200 Wireless Dual Band Gigabit VDSL2/ADSL2+ Router (Annex A) V1.0 |
Part Number | Archer VR200 |
Κατηγορία | Modem / Router |
Τύπος γραμμής | ADSL over PSTN |
Θύρες | 1x ADSL 1x Gigabit WAN 4x Gigabit LAN USB |
Υποστήριξη WiFi | 802.11 b/g/n 802.11 ac Dual Band |
Ταχύτητα WiFi | AC750 |
Εγγύηση | 3 Έτη |
